ws2813 led strip

                                                   30led/m ws2813 led strip

                                                            60led/m ws2813 led strip

the difference between ws2812b and ws2813

now ws2813 is coming,let discuss the difference between ws2812b and ws2813.

ws2813 is ws2812 updated version

WS2813 Feature:

The control circuit and the LED share the only power source.

The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.

Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform of signal takes place.

Built-in power-on reset and brown-out reset circuits.

The gray levels of each pixel are of 256 levels, which achieves “256*256*256=16777216” full-color display, and the refresh frequency reaches to 2KHz/s

Serial cascade interface, data receiving and decoding depend on just one signal line.

Dual-signal wires version, signal break-point continuous transmission

Any two point the distance more than 3m transmission signal without any increase circuit.

When the refresh rate is 30fps, cascade numbers are far more than 1024 points.

Data transmitting at speeds of up to 800Kbps.

Good color consistency reliability, high cost-effective.

The ws2813 led datesheet is http://www.normandled.com/upload/201605/WS2813%20LED%20Datasheet.pdf

addressable white ws2811 led strip

addressable sk6812 led strip aging test

addressable ws2811 led strip

NeoPixel Digital RGB LED Strip sk9822 led strip

sk9822 pixel led strip

addressable tm1812 32led 32pixel led strip

Signal break-point continuous transmission sk6822 led strip

WS2813 LED

     WS2813 LED is a new  signal break-point continuous transmission.

WS2813 is an intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. Its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, which achieves highly consistent color effect.

The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce 24bit. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.

The BIN receives the data signal, and then compare the data with the DIN side after phagocytosis of 24bit data, if DIN do NOT receive the signal, then switching to BIN for receiving the input signal, which ensure that any the IC's damage does not affect the signal cascade transmission and make the BIN in state of receiving signal until restart after power-off.

Refresh Frequency updates to 2KHz, Low Frame Frequency and no Flicker appear in HD Video Camera.

250us or more of reset time, it won’t cause wrong reset while interruption, it supports the lower frequency and inexpensive MCU.

There’re in a choice of 18mA or 5mA current version, and also in a choice of high brightness or cost-effective version. That is to say, WS2813 is provided with four versions.

sk6822 addressable led strip

Addressable white tm1812 led strip

                    Addressable white tm1812 led strip

TM1812 one ic has 4pixel ,so it can achieve each led can be controlled,there are  rgb and white led,so it can be produced tm1812 addressable white led strip.

Addressable white ws2811 led strip

                    Addressable white ws2811 led strip

WS2811 led strip has 30led/m ,48led/m and 60led/m,the led has rgb and white 2 types,but some projects just need different white color effects, you can use ws2811 addressable white led strip.

100 pcs ws2812b led sign module,dc 5v,ws2811ic built in

100 pcs ws2812b led sign module,dc 5v,ws2811ic built in

1). 10*10 pixel ws2812 WS2812B led rgb pixel module

2). 256 gray scale, each led as one pixel

3). ws2812b ic built-in 5050 rgb

We can provide the whole device: 10*10 pixel ws2812 WS2812B led rgb pixel module + LED controller + Software + Power Supplier + after-sale service + Project guide.



                                                                                                  www.normandled.com

SK9822 Led Strip

SK9822 Led Strip

We have developed a new type of digital led strip sk9822,it is as same as APA102 ,have clock , and Data signal , which can be compatible with APA102, can use same led controller as APA102.

                                                                              www.normandled.com

4Pin LED Connector For APA102 WS2801 LPD6803 Led Strip

    4Pin LED Connector For APA102 WS2801 LPD6803 Led Strip

Those led connector is 4pin , For  10mm 12mm APA102 ,WS2801 LPD6803 LED STRIP .



                                                                                                                     www.normandled.com

3pin led strip connector For WS2812B APA104

                                  3pin led strip connector for WS2812B APA104

Those Solderless led connector is for WS2811, WS2812B SK6812 , APA104 , UCS1903 led strip , which is 3pin ,there are 10mm , 12mm.

12V WS2812B SK6812 INK1003 LED Strip

12V WS2812B SK6812 INK1003 LED Strip

Usually ws2812b sk6812 ink1003 led strip is 5 voltage,now we can produce 12V ,we put 2 piece DC-DC module per meter,change 12V to 5V.

The picture is

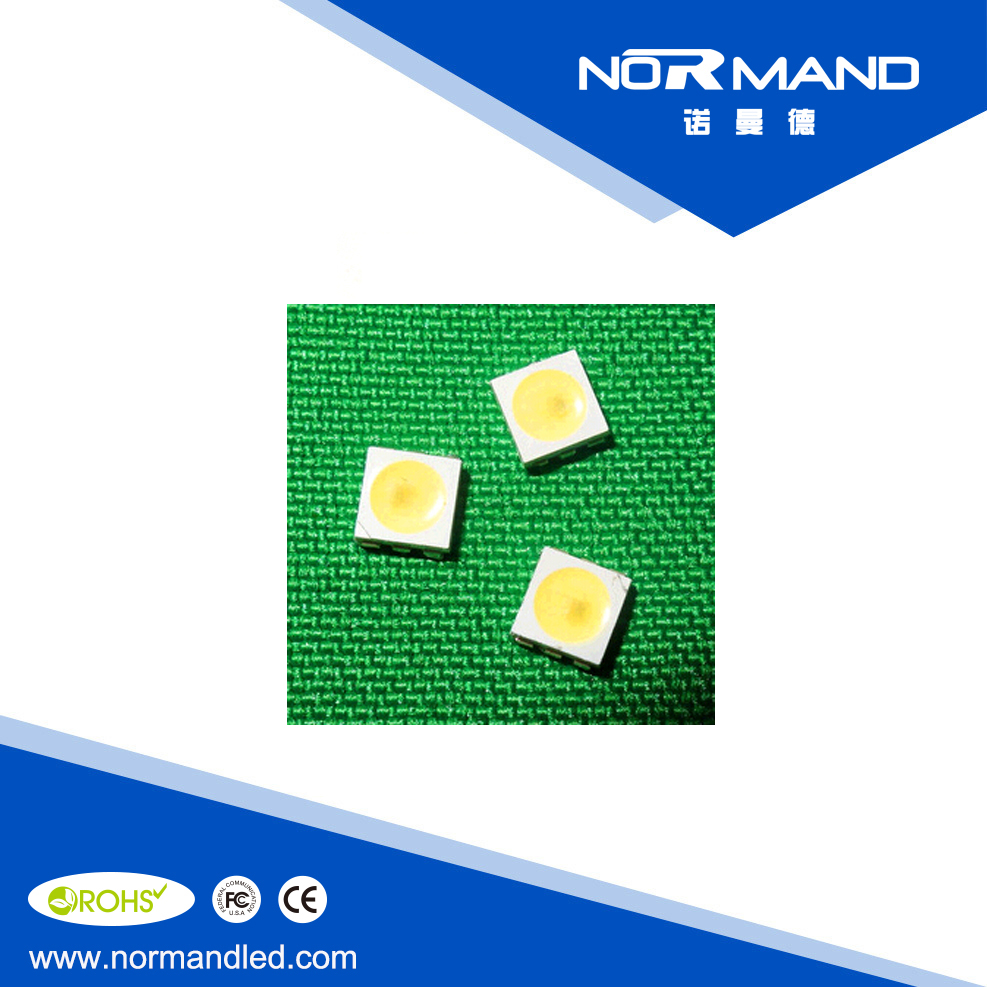

APA102 White Led

APA102 White Led

APA102 white is a type ic for the one color White Diming control strip

and string ,This ic using the CMOS process to provide three White  LED

output driver to adjust the output with 256 gray scale and 32 brightness

adjustment ,APA with 2 signal output way , one is clock ,another is data,

the clock and data is synchronizated ,so that the crystal cascade piece

of output movement is sychronizated.

APA102 LED And LED Strip

                  APA102 LED And LED Strip

APA102 for the three-color RGB LED dimming control string Then IC, using the CMOS process,

providing three-color RGB LED output driver to adjust the pouput with 256 gray-scale and

32 brightness adjustment APA102 with two-output way,the CLK signal by synchronizatioAPA102 LED CHIP ,

so that the crystal cascade Piece of output movements synchronized.

Features

CMOS process, low coltage, low power consumption
Synchronous of two-lane
Choose postive output or negative output RGB tri-color LED out, 8 Bit(256level) color Set,

 5Bit (32 level) brightness adjustment

Built-20mA constant current output
With self-detection signal
Built-in support for continuous oscillation PWM output can be maintained Static Screen

                                                                                              www.normandled.com

SK6812 RGBY LED Chip

SK6812 RGBY LED Chip

SK6812 RGBY is a smart LED control circuit and light emitting circuit in one controlled LED
source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.

The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmittedfrom the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.

The LED has a low driving voltage (which allows for environmental protection and energy saving),high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.
2. Main Application Field:
● Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,LED appearance / scene lighting
● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..
3. Description:
● Top SMD internal integrated high quality external control line serial cascade constant current IC;
● control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
●built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
●The built-in power on reset and reset circuit, the power does not work;
●gray level adjusting circuit (256 level gray scale adjustable);
● red drive special treatment, color balance;
● line data transmission;
● plastic forward strengthening technology, the transmission distance between two points over 10M;

●Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec



                                                                                                     www.normandled.com

SK6812 3535 Mini LED

SK6812Mini 3535 LED

1. Product Overview :

SK6812mini 3535 led    is a smart LED control circuit and light emitting circuit in one

controlled LED source, which has the shape of a 5050 LED chip. Each

lighting element is a pixel, and the intensities of the pixels are contained

within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color

of the pixels. The control circuit consists of a signal shaping amplification

circuit, a built-in constant current circuit, and a high precision RC oscillator.

The data protocol being used is unipolar NRZ communication mode. The 24it  data is transmitted from the controller to DIN of the first element, and if it is  accepted it is extracted pixel to pixel. After an internal data latch, the

remaining data is passed through the internal amplification circuit and sent

out on the DO port to the remaining pixels. The pixel is reset after the end

of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal

transmission speed.

The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low  power, and long life. The control circuit is integrated in the LED above.

2. Main Application Field:

● Full color LED string light, LED full color module, LED super hard and soft

lights, LED guardrail tube,LED appearance / scene lighting

● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..

3. Description:

● Top SMD internal integrated high quality external control line serial cascadeconstant current IC;

● control circuit and the RGB chip in SMD 5050 components, to form a

complete control of pixel, color mixing uniformity and consistency;

●built- in data shaping circuit, a pixel signal is received after wave shaping

and output waveform distortion will not guarantee a line;

●The built-in power on reset and reset circuit, the power does not work; gray level adjusting circuit (256 level gray scale adjustable);

● red drive special treatment, color balance;

● line data transmission;

● plastic forward strengthening technology, the transmission distance

between two points over 10M;

● Using a typical data transmission frequency of 800 Kbps, when the refresh

 rate of 30 frames per sec.

Parameter
1. Input DC5v, Max 12 watts/meter
2. sk6812mini, 1 LED = 1 pixels
3. 60 LEDs/m, SMD3535 RGB
4. Greyscale=256/color, 24 bits for RGB
5. WHITE FPC
6. FPCB width =4mm
7. 2meters/roll
8. Cables: DC5V, DATA, GND

                                                                                                                                                   www.normandled.com

SK6822 Led Chip

SK6822 Led Chip

SK6822 is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.
The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal     transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.

2. Main Application Field:
● Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,LED appearance / scene lighting
● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..
3. Description:
● Top SMD internal integrated high quality external control line serial cascade constant current IC;
● control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
● built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
● The built-in power on reset and reset circuit, the power does not work;
● gray level adjusting circuit (256 level gray scale adjustable);
● red drive special treatment, color balance;
● line data transmission;
● plastic forward strengthening technology, the transmission distance between two points over 10M;

●Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

                                                                                                         www.normandled.com

SK6812 WWA Led

                                     SK6812 WWA Led

SK6812 WWA is a smart LED control circuit and light emitting circuit in one controlled LED source,
which has the shape of a 5050 LED chip.  Each lighting element is a pixel, and the intensities of the
pixels are contained within the intelligent digital interface input.  The output is driven by patented PWM
technology, which effectively guarantees high consistency of the color of the pixels.  The controlcircuit

consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high
precision RC oscillator. The data protocol being used is unipolar NRZ communication mode.  The 24-bit

data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel

to pixel.  After an internal data latch, the remaining data is passed through the internal amplification circuit

and sent out on the DO port to the remaining pixels.  The pixelis reset after the end of DIN.  Using automatic
shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited

by signal transmission speed.The LED has a low driving voltage (which allows for environmental protection

 and energy saving),high brightness, scattering angle, good consistency, low power,and long life.  The control

 circuit is integrated in the LED above.

Main Application Field:
Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,
LED appearance / scene lighting
Description:
Top SMD internal integrated high quality external control line serial cascade constant current IC;
control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color
mixing uniformity and consistency;
built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform
distortion will not guarantee a line;
The built-in power on reset and reset circuit, the power does not work;gray level adjusting circuit

(256 level gray scale adjustable);

red drive special treatment, color balance;
line data transmission;
plastic forward strengthening technology, the transmission distance between two points over 10M;
Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

SK6812:

The default is the chips with IC integration -SK6812 WWA:

White 6000-7000K

Warm White 2700-3000K

Amber 1800-2000K

                                                              www.normandled.com

SK6812 RGBW Led Strip 4 in 1 LED

SK6812 RGBW Led

SK6812 RGBW LED chip IS 4 IN ONE led ,One 5050 LED have 4 led chip inside , They are Red, Green , Blue , White. About White ,it has Warm white , Nature white ,Cool white . and we have use this SK6812 RGBW LED CHIP on our led strip , we have make 30LEDS , 60LEDS ,72LEDS , 144LEDS .

Those RGBW SK6812 LED STRIP is not only have RGB ,but also can mix color , mix white , then can make some different color from RGB, then you can have more choose.

Here is some pictures about SK6812RGBW Led and SK6812RGBW Led Strip:
